High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

Name: High Precision RS485 Output Signal 0 023MM Measuring Magnetostrictive Probe
Brand: Guihe
Price: 99 USD

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe Manufactures

Brand Name : Guihe

Model Number : SYW-A

Certification : PCEC Explossion proof certification

Place of Origin : China

MOQ : 1 PCS

Price : USD99-1000/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS per month

Delivery Time : 5-7 working days

Packaging Details : magnetostrictive probe wooden case packing

Name : Magnetostrictive automatic tank gauge probe

Power supply : 24V

Resolution : 0.023mm

Output signal : RS485

Temperature sensor : 5

keywords : magnetostrictive probe

Contact Now

High Precision Magnetostrictive Probe RS485 Output Signal 0 . 023MM Measuring

ATG Magnetostrictive Probe (SYW-A )

Guihe SWY series tank level probe uses magnetostrictive principle, intrinsically safe explosion-proof design, can accurately measure the product level, water level and temperature in fuel tank.

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

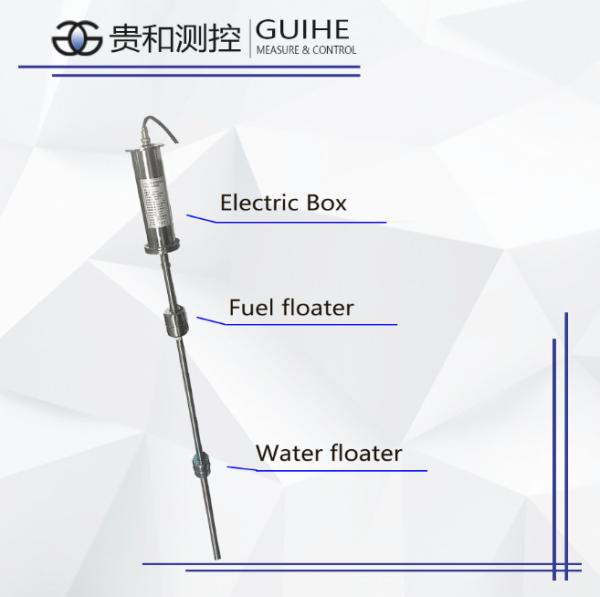

●The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

●Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

●Specification:

No.	Item	Specification
1	Usage	To measure product level, water level and temperature
2	Measuring Medium	Gasoline, diesel, kerosene, ethanol , water etc.
3	Explosion-proof	ExiaIIBT4 (Intrinsically safe)
4	Temperature	-40℃~70℃
5	Fuel Level Accuracy	±0.3mm
6	Temperature Accuracy	±0.2℃
7	Height Resolution	0.023mm
8	Lowest Product Inactive Zone	2.5'' floater-180mm
9	Lowest Water Inactive	2.5'' floater-25mm
10	Measured Variable	Product level, interface level and temperature of 5 sensors and average temperature
11	Measuring Range	600~4000mm
12	Communication	RS-485
13	Power Supply	+24~26VDC
14	Protection Class of Probe Canister	IP67
15	Probe Material	1Cr18Ni9Ti
16	Max Communication Distance	1200m

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

Measuring mothed before order:

h1 : it’s the height from the top surface of the manhole cover to the bottom of the tank
h2 : it’s the height of vertical-pipe from the top surface of the vertical-pipe flange to the top surface of the manhole cove. Here is the size of vertical-pipe we recommended: 400mm above the manhole cover, 50mm under the cover.
D (diameter of the tank): it’s the valid max inside diameter of the tank.
L (length of the tank): it’s the valid max inside length of the tank.

Notes: If install the probe from the gauge hatch, you need to add a vertical-pipe at the top of the gauge hatch, and it’s total height of the vertical-pipe and the gauge hatch is more than 400mm.

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

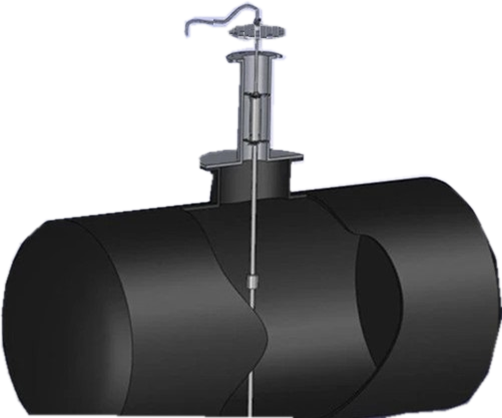

Level gauge installation:

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

Packing:

Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

High Precision RS485 Output Signal 0 . 023MM Measuring Magnetostrictive Probe

Product Tags:

fuel tank probe

float level transmitter
